NOTE: Do not connect anything except the injector system to the instrument’s

injector system connector. This connector is supplied with 24V of power and

may damage your device if used incorrectly.

Components

Description

9 RS-232 Port

• Connects to a PC, 9-pin

serial port

10 USB Port

•

Connects to a PC

11 Injector System Connector

• Exclusively connects the

Injector System to the

instrument’s 15-pin port

12 Power Connector

• Connects with an AC

power supply

13 Power Switch

• Turns the instrument on

and off

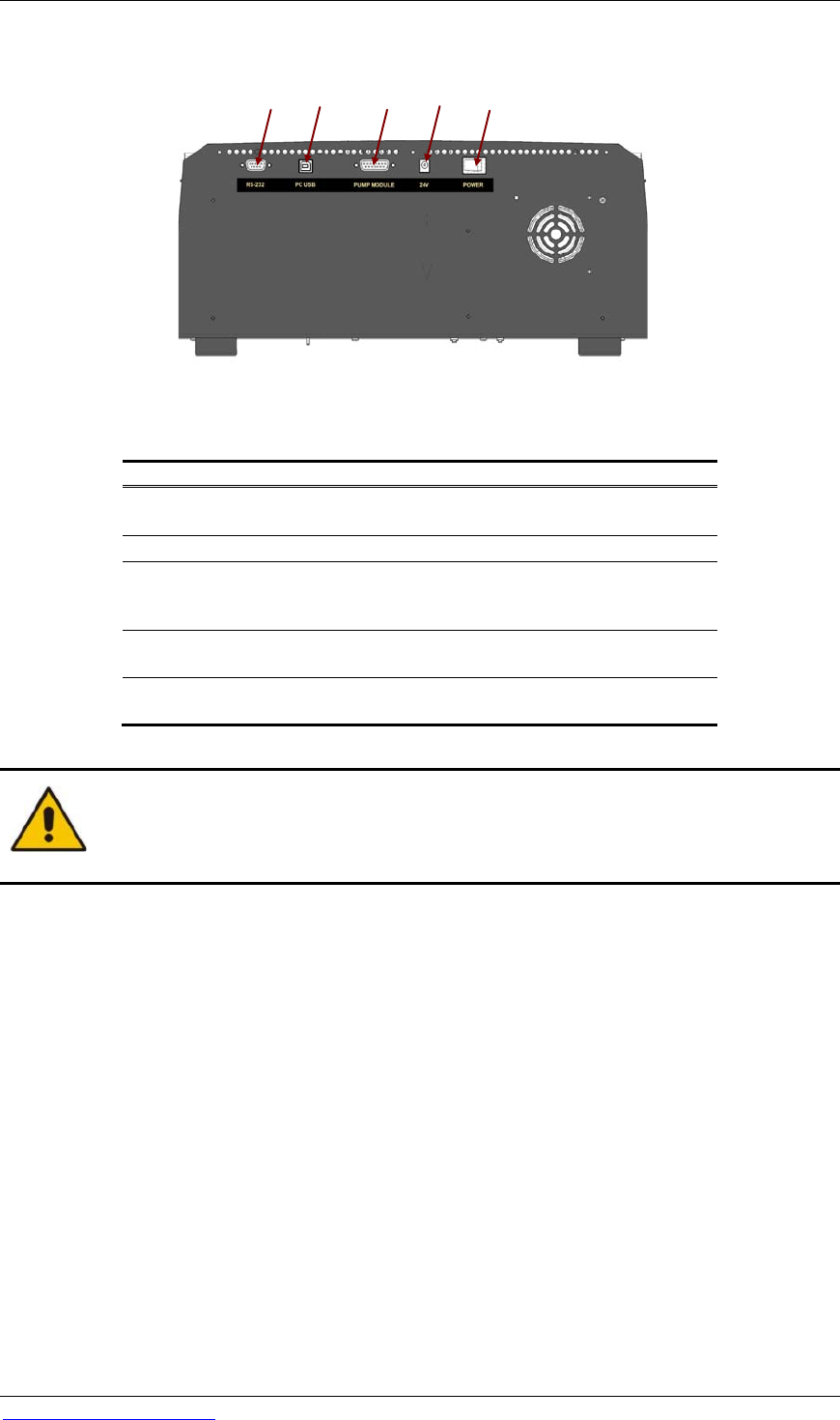

Figure 1-3: Back Panel of the Modulus™ Microplate Reader
