4 Absorbance

www.turnerbiosystems.com 31

9. To ensure the instrument detects the newly installed module, verify the ABSOR icon

appears on the INSTRUMENT STATUS bar on the INSTRUMENT CONTROL

screen. See Figure 4-7

Figure 4-7: DETECTION MODE

icon on the INSTRUMENT

STATUS bar indicating the

Absorbance Module is detected

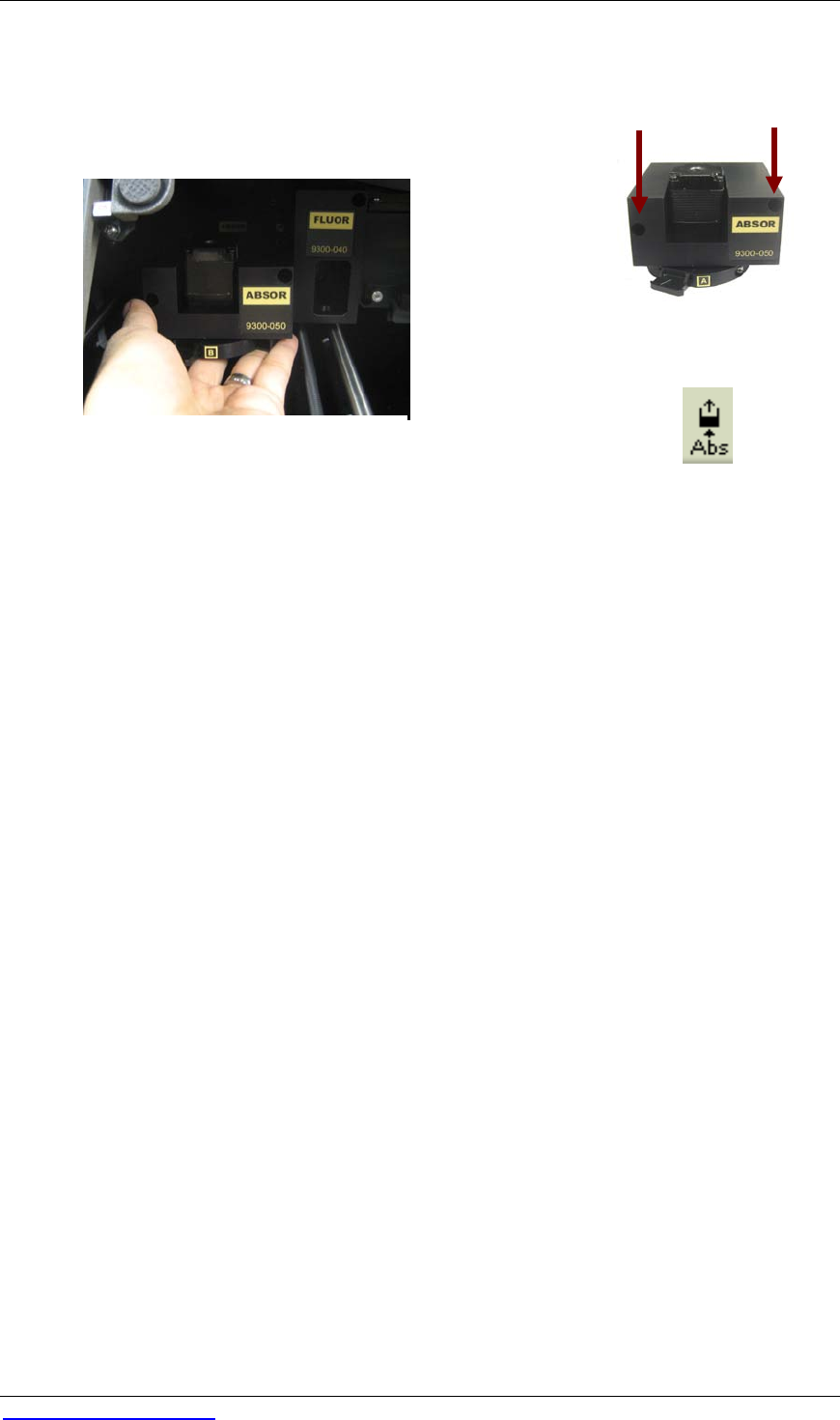

Figure 4-5: Installing the Absorbance

Module

Figure 4-

6: Arrows point to

the two captive screws on

the Absorbance Module
