AR-651/810 PAPER FEEDING SECTION 9 - 25

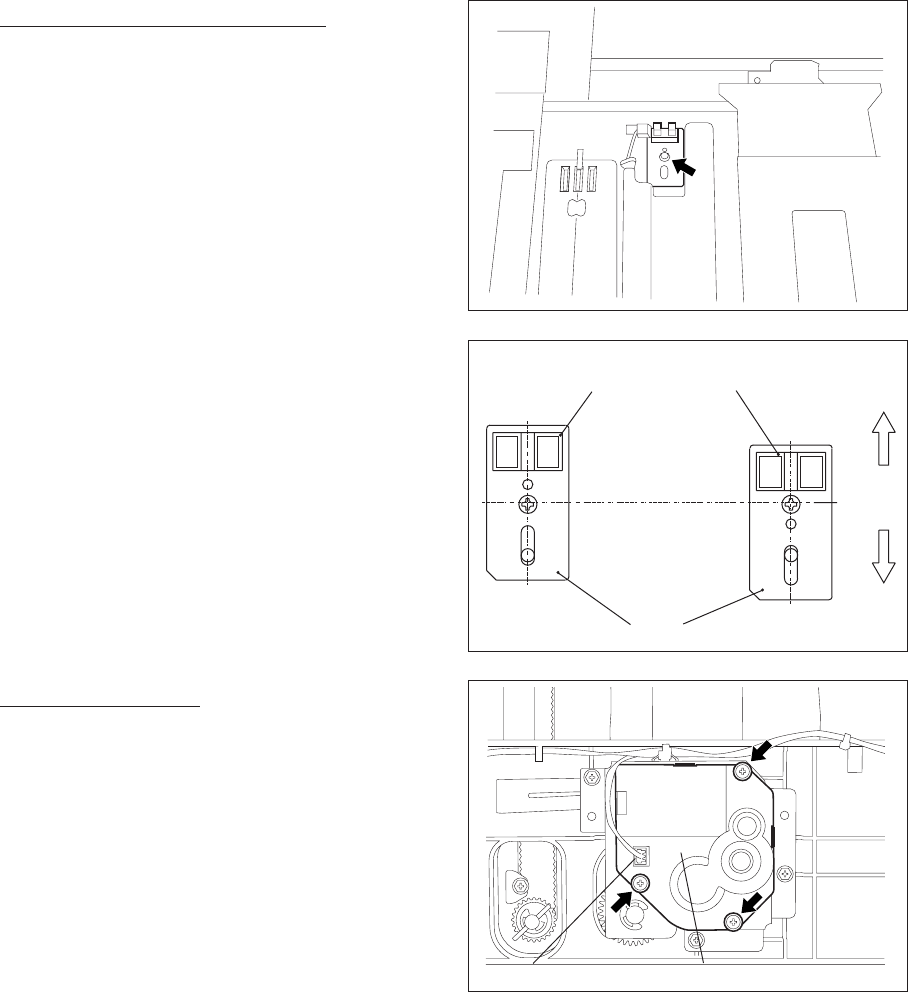

(G-7) End fence stop position sensor
(1) Disconnect 1 connector, remove 1 screw and
release the bracket.
(2) Release the latches and take off the sensor.
Note: Remember that the position where the end fence
stop position sensor is installed depends on a
paper size.
(G-8) End fence motor
(1) Disconnect 1 connector.
(2) Remove 3 screws, and take off the end fence
motor.
End fence motor
[A4 size] [LT size]
End fence stop position sensor
Bracket
Feed side
Standby
side
Connector
