AR-651/810 PROCESS SECTION 10 - 8
Terminal cover
Latch

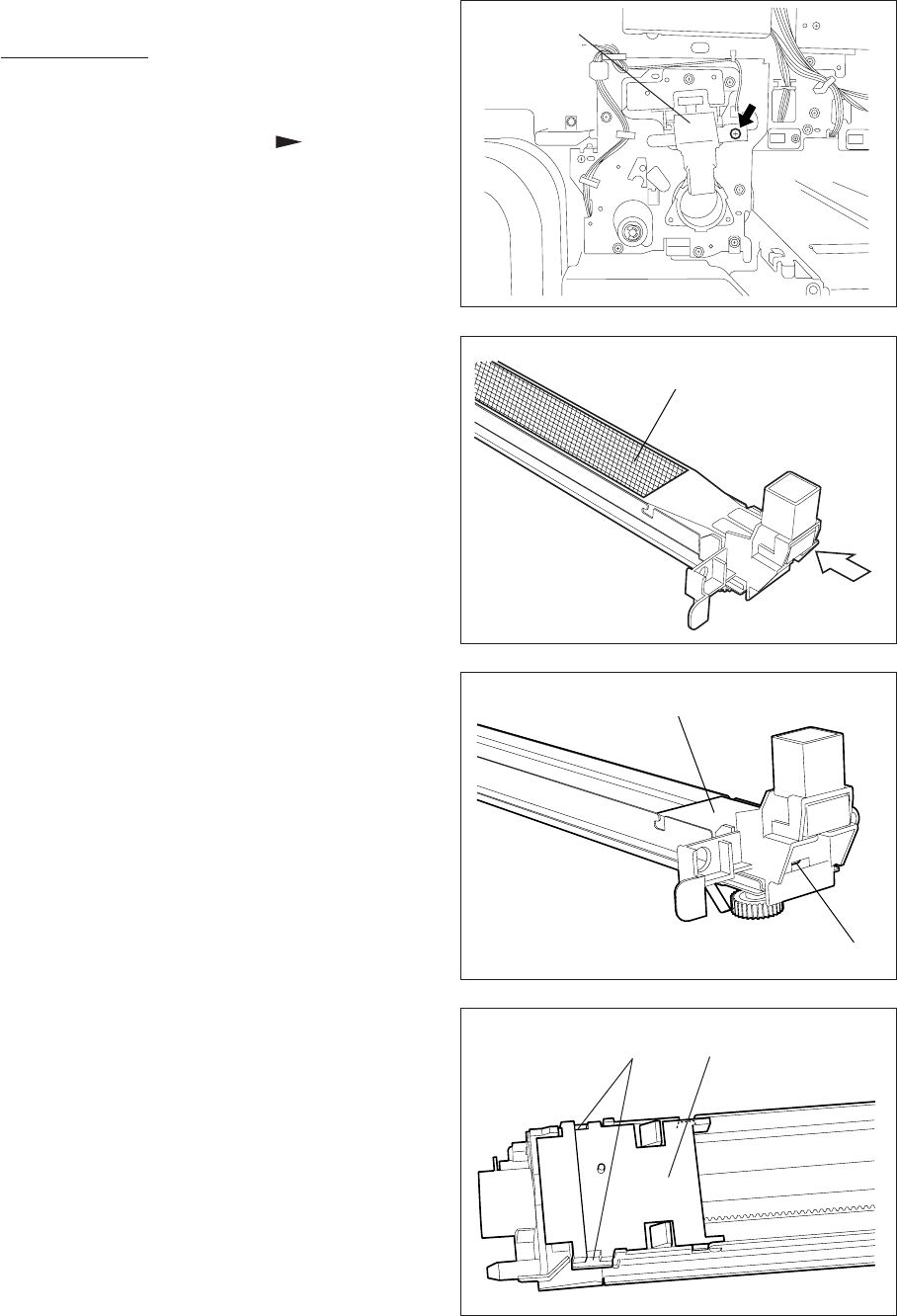

10. 6. Disassembly and Replacement
[A] Main charger
(1) Open the front cover and take off the front
side right inner cover, toner cartridge drive
unit and toner recycle unit. (
Chap.12.6)
(2) Remove 1 screw and pull out the main
charger.
Main charger
Main charger grid
Terminal cover
(3) Push the button to release the tension of the
main charger grid and take off the grid.
(5) Release 2 latches and take off the rear side
terminal cover.
(4) Release 1 latch and take off the front side
terminal cover.
Latch
