AR-651/810 TRANSFER/TRANSPORT UNIT 13 - 5
[B] Transfer belt

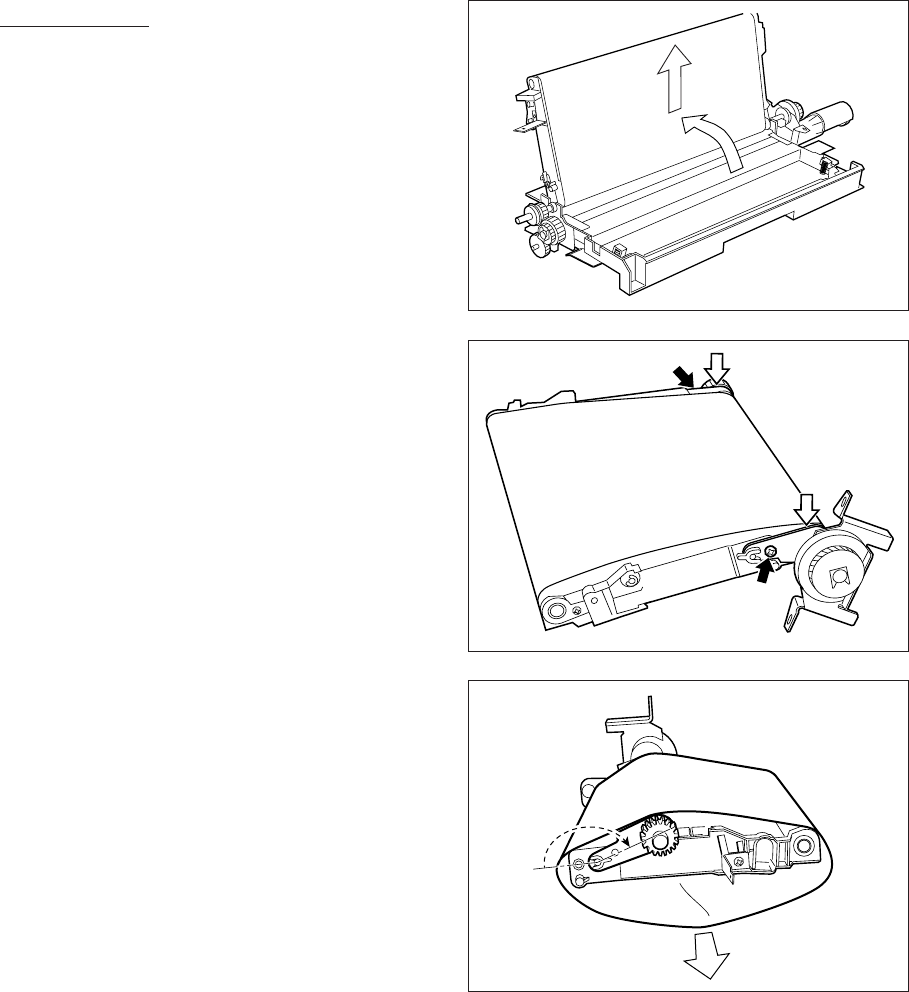

(1) Remove the transfer belt unit.
(2) Turn the transfer belt keeping/feeding section
90 degrees and pull it out upward.
(3) Remove 2 screws.
Note: When tightening up the screws, tighten them so
that the link plate is securely fixed by pushing it
toward the direction of the white arrows.
(4) Turn the drive roller as the picture shows.
(5) Pull out the transfer belt.
Notes: 1. When installing the transfer belt, install it
at the center not to be moved aside.
2. Do not touch the surface of the belt with bare
hands.
