AR-651/810 PROCESS SECTION 10 - 9
Spring
Wire
Pad
Terminal
Charger wire

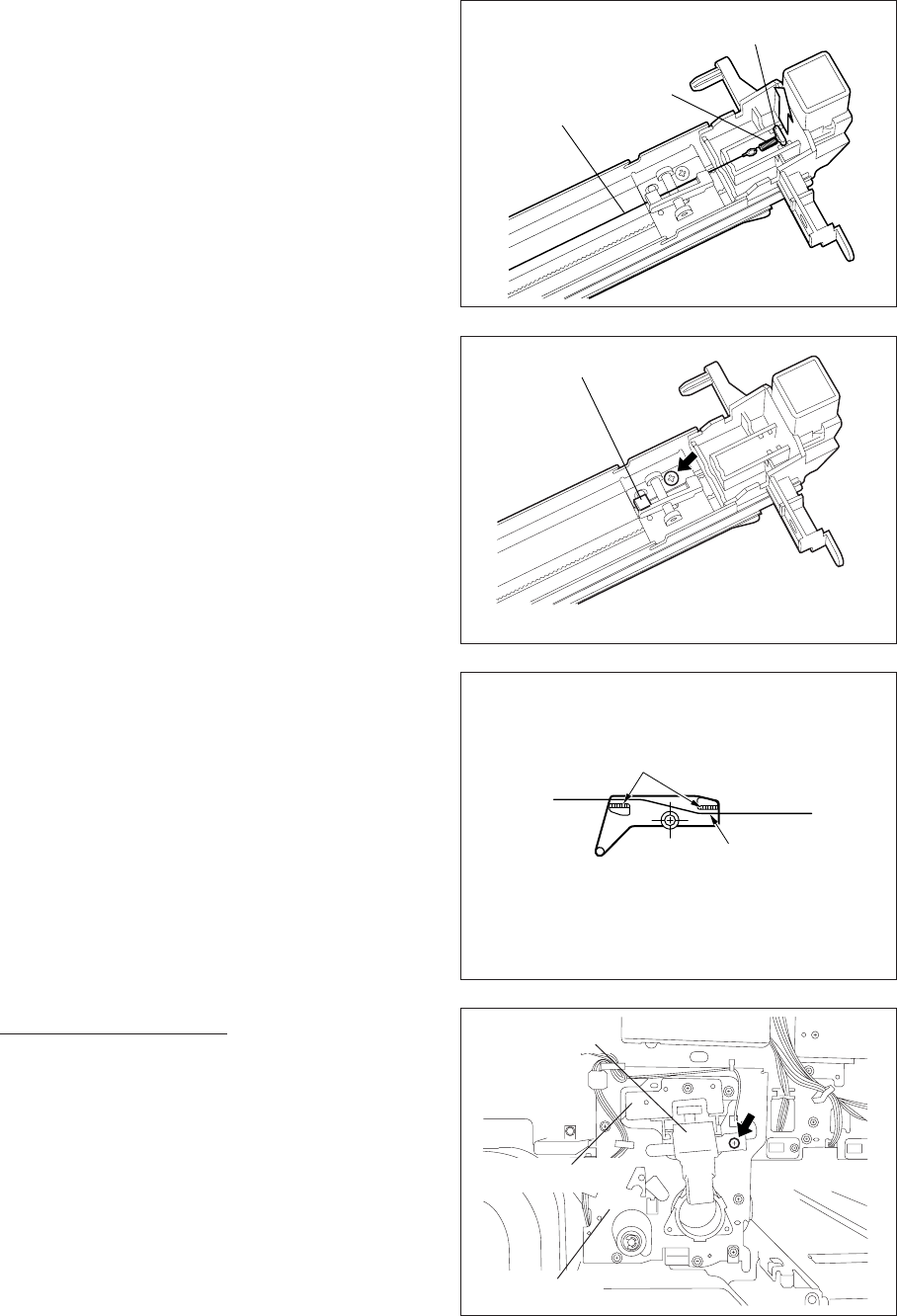

[B] Wire cleaner drive unit
(1) Remove the main charger and cleaner unit.
(2) Disconnect 1 connector, remove 1 screw and
take off the charger guide.
Main charger
Charger guide
Cleaner unit
(7) Remove 1 screw and take off the cleaning
pad.
(6) Pull up the terminal, release the spring,
unhook the rear side hook and take off the
charger wire.
Cleaning pad
Note: When installing the cleaning pad, install it so
that the charger wire go through the pad side.
