AR-651/810 PROCESS SECTION 10 - 12

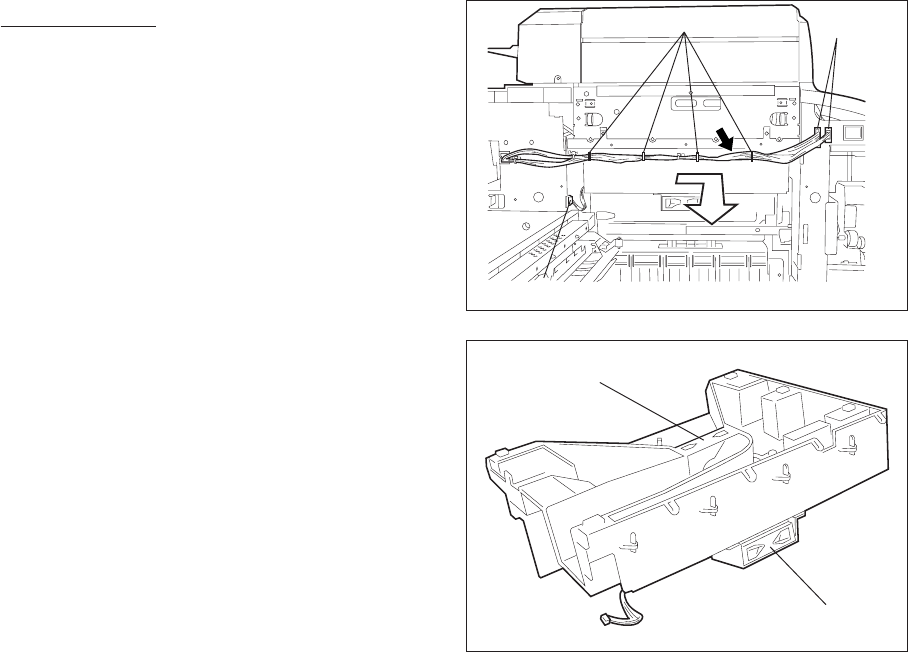

[G] Exhaust duct
(1) Take off the exit side upper cover and open
the exit cover.
(2) Disconnect 3 connectors and release the
harnesses from 4 clamps.
(3) Unhook the exhaust duct with sliding it toward
the front side and pull it out.
(4) Disconnect 1 connector and pull out the duct
out fan.
(5) Remove 2 screws and take off the exit fan
with the bracket.
(6) Remove 2 screws and release the exit fan
from the bracket.
Connector
Connector
Clamp
Duct out fan
Exit fan
