1-3
BEFORE USING THE MACHINE
Contents
This section provides basic information about the machine. Please read this chapter before using the machine.

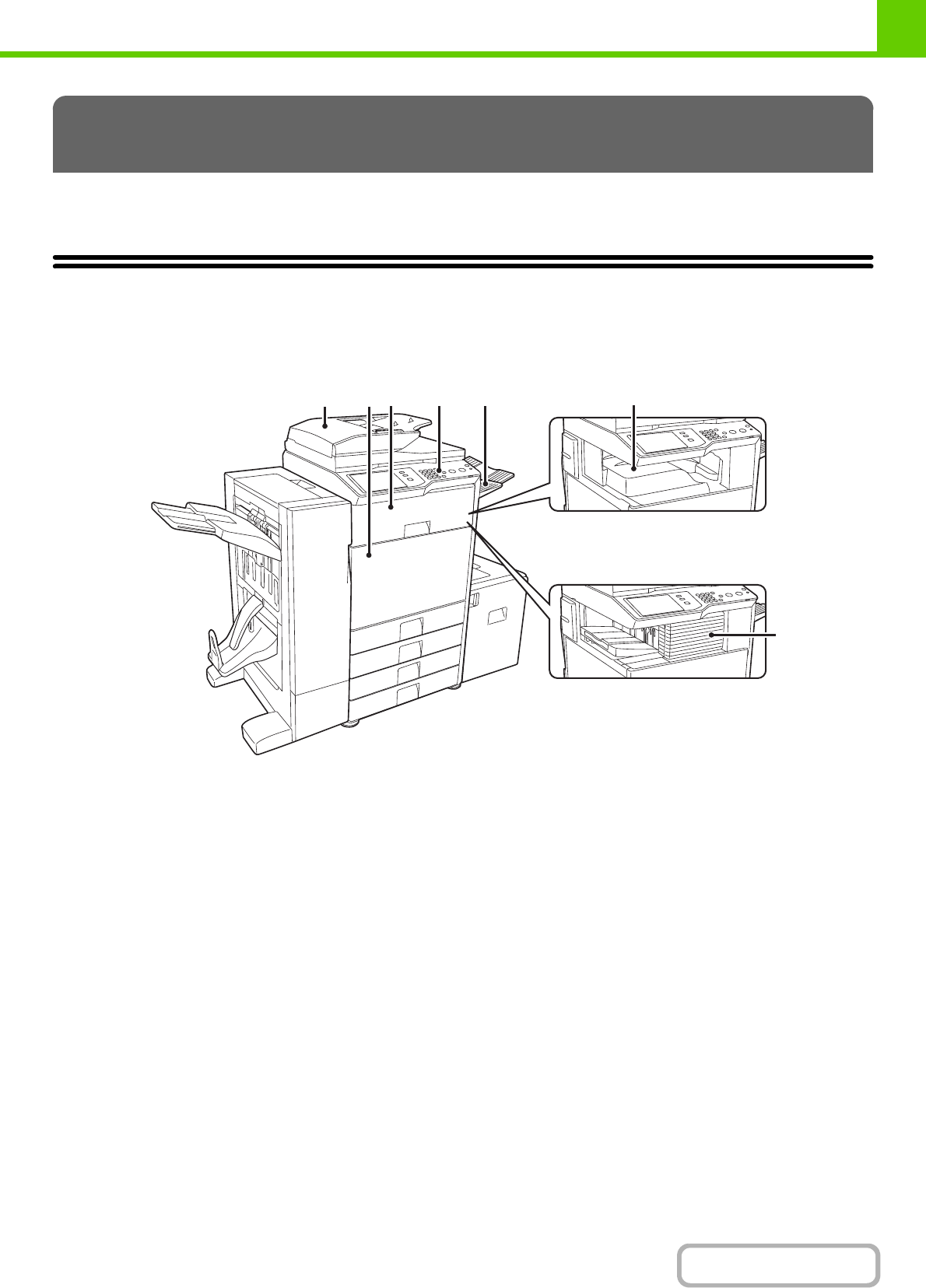

PART NAMES AND FUNCTIONS
EXTERIOR
(1) Automatic document feeder
This automatically feeds and scans multiple originals. Both
sides of 2-sided originals can be automatically scanned.
☞ PLACING THE ORIGINAL (page 1-37)
(2) Front cover
Open this cover to switch the main power switch to "On"
or "Off" or to replace a toner cartridge.
☞ TURNING THE POWER ON AND OFF (page 1-15)
☞ REPLACING THE TONER CARTRIDGES (page
1-64)
(3) Paper pass unit*
This transfers output to the saddle stitch finisher.
(4) Operation panel
This is used to select functions and enter the number of
copies.
☞ OPERATION PANEL (page 1-8)
(5) Exit tray unit (right tray)
*
When installed, output can be delivered to this tray.
(6) Output tray (center tray)
Output is delivered to this tray.
(7) Finisher*
This can be used to staple output. A punch module can
also be installed to punch holes in output.
☞ FINISHER (page 1-43)
* Peripheral device.
BEFORE USING THE MACHINE
(1)
(2)
(3)
(
6
)
(5)
(4)
(7)
When a finisher / saddle stitch
finisher is not installed
When a finisher is installed
