TROUBLESHOOTING
Contents

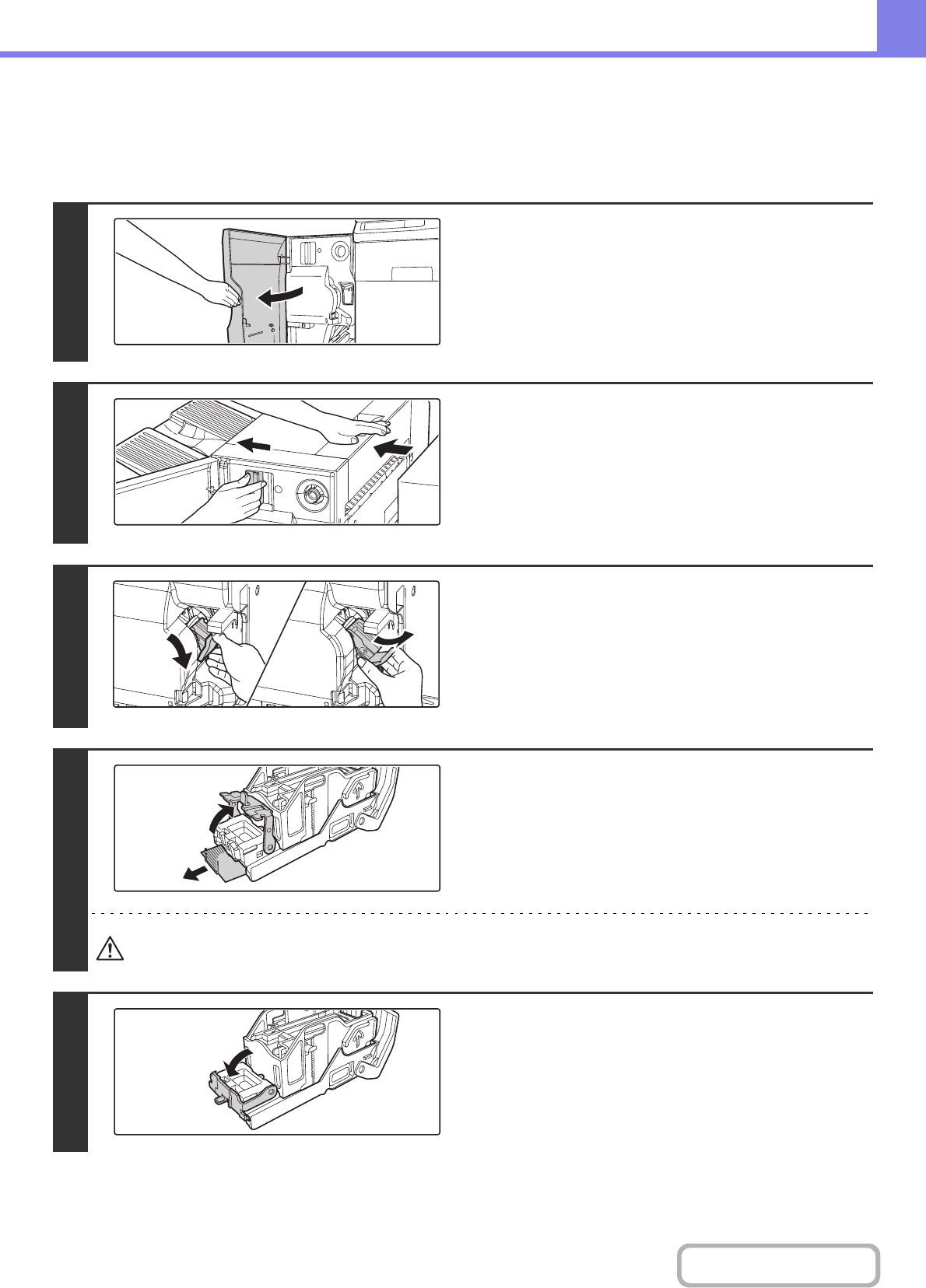

SADDLE STITCH FINISHER
Finisher unit
1
Open the front cover.
2
While pulling the lever, slide the saddle
stitch finisher to the left until it stops.
3
Lower the staple case release lever and
remove the staple case.
Pull the staple case out to the right.
4
Raise the lever at the front end of the
staple case and remove the jammed
staple.
Remove the leading staple if it is bent. If bent staples remain, a
staple jam will occur again.
Take care that a bent staple does not hurt you.
5
Lower the lever at the front end of the
staple case.
