BEFORE USING THE MACHINE
Contents
SADDLE STITCH FINISHER MAINTENANCE
When the staple cartridge runs out of staples, a message will appear in the operation panel. Follow the procedure below
to replace the staple cartridge.

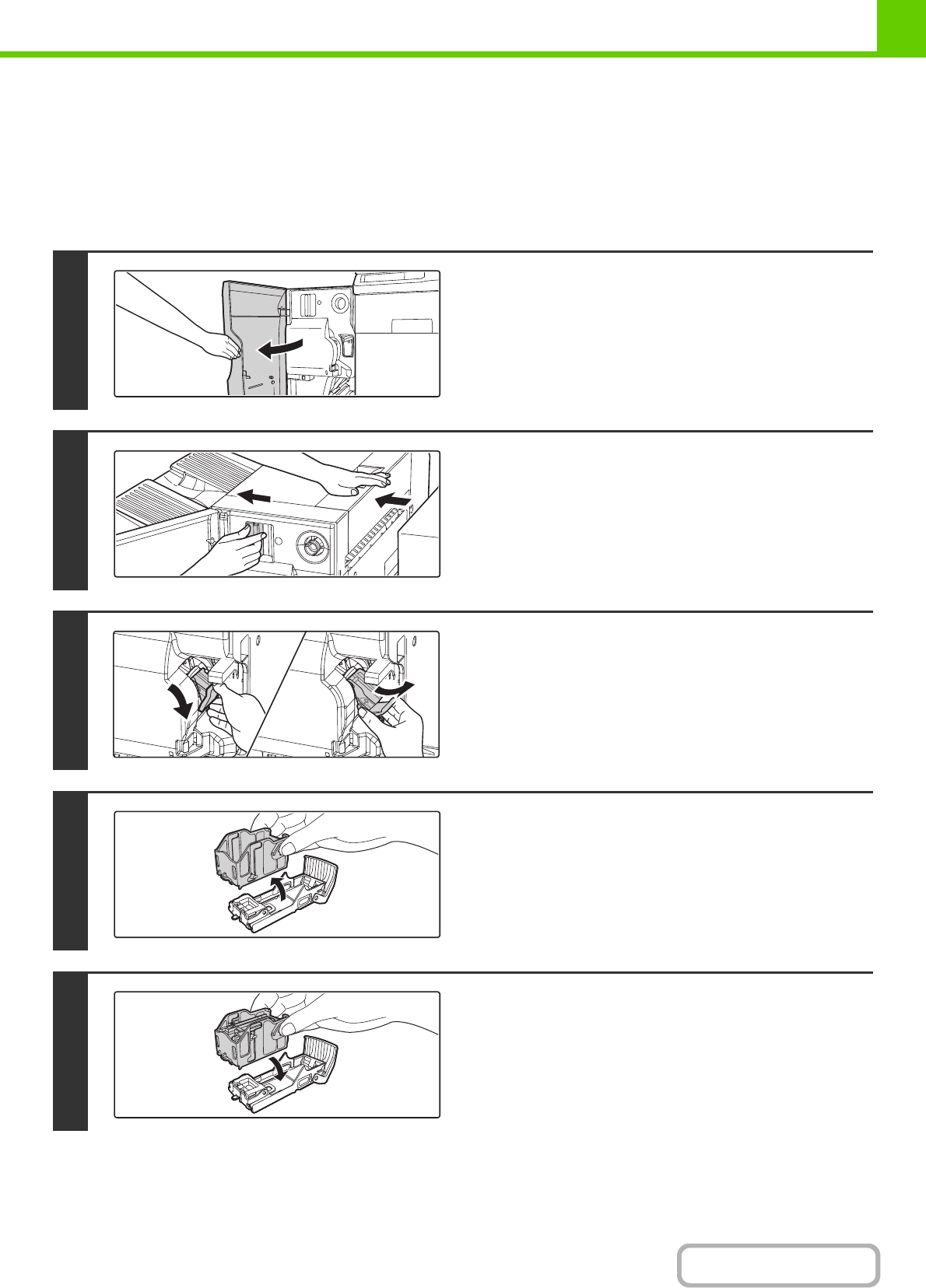

Replacing the staple cartridge (finisher unit)
1
Open the front cover.
2
While pulling the lever, slide the saddle
stitch finisher to the left until it stops.
3
Lower the staple case release lever and
remove the staple case.
Pull the staple case out to the right.
4
Remove the empty staple cartridge from
the staple case.
5
Insert a new staple cartridge into the
staple case as shown.
Push the staple cartridge in until it clicks into place.
