20
INSTALLING THE PRINTER DRIVER / PC-FAX DRIVER
2

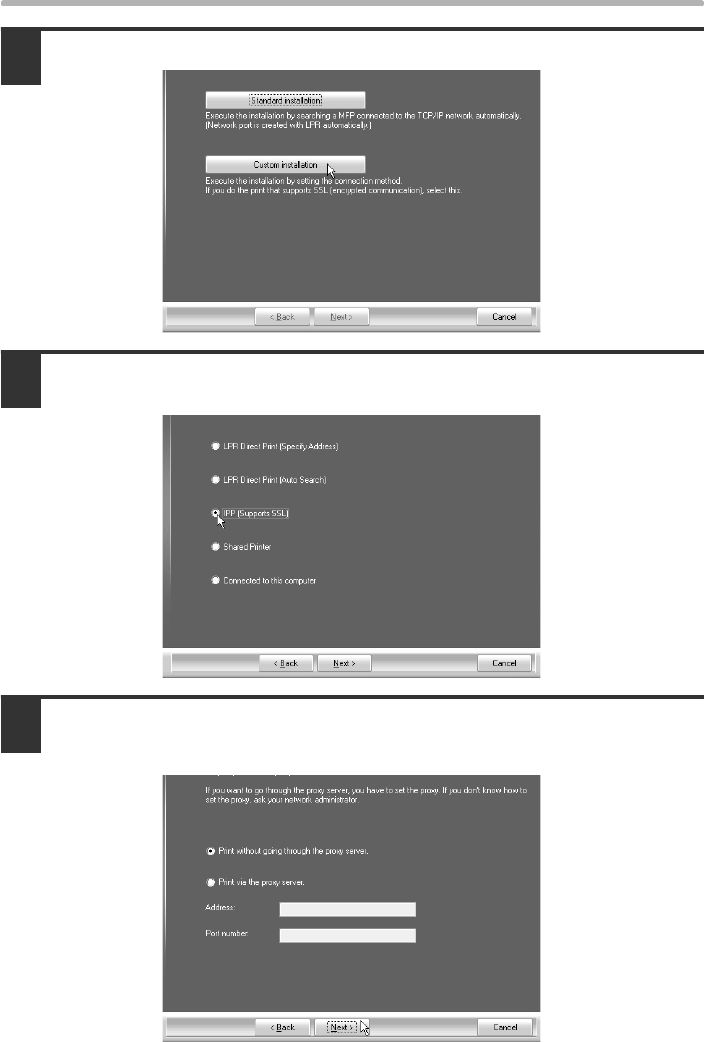

Click the [Custom installation] button.
3
When you are asked how the printer is connected, select [IPP] and
click the [Next] button.
4
If a proxy server is used, specify the proxy server and click the [Next] button.
To specify a proxy server, select [Print via the proxy server] and then enter the
[Address] and [Port number].
!mxc381_us_ins.book 20 ページ ２００８年８月１９日 火曜日 午前１０時４２分
