INSTALLING THE PRINTER DRIVER / PC-FAX DRIVER
2

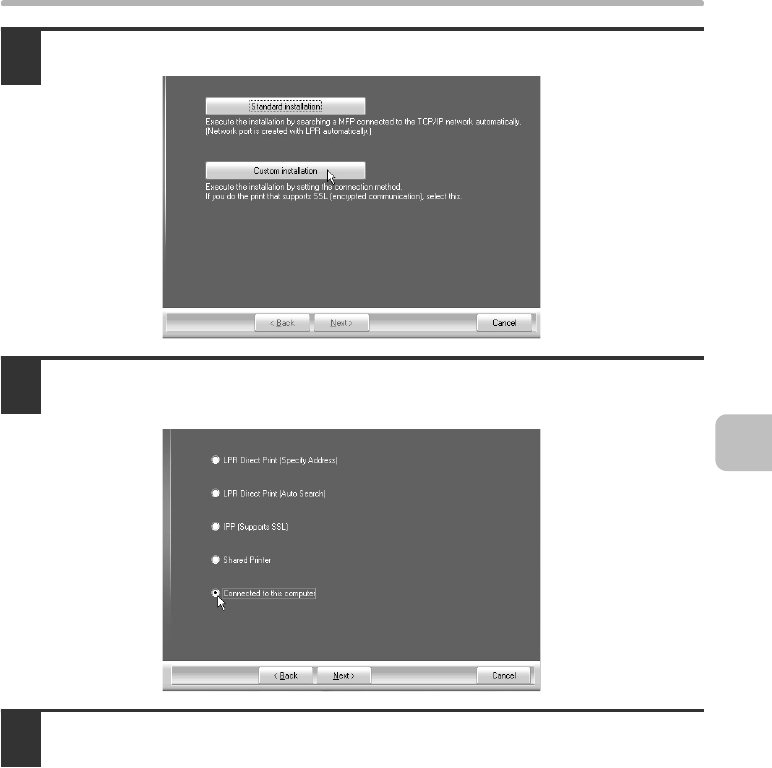

Click the [Custom installation] button.
3
When you are asked how the printer is connected, select [Connected
to this computer] and click the [Next] button.
4
When you are asked if you wish to install the display fonts, select an
answer and click the [Next] button.
!mxc381_us_ins.book 23 ページ ２００８年８月１９日 火曜日 午前１０時４２分
