4.3 Memory Module 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-11
4.3 Memory Module
CAUTION:The power of the computer must be turned off when you remove the memory
module. Removing a memory module with the power on risks damaging the
module or the computer itself.
Do not touch the memory module terminals. Any dirt on the terminals may
cause memory access problems.
Never press hard or bend the memory module.
Removing the memory module
To remove a memory module, confirm that the computer is not in stanby mode or hibernation
mode. Then perform the following procedure (See Figure 4-3, 4-4).
1. Turn the computer upside down.
2. Loosen the screw (with e-ring) securing the memory slot cover.
3. Remove the memory slot cover from the edge near the screw.

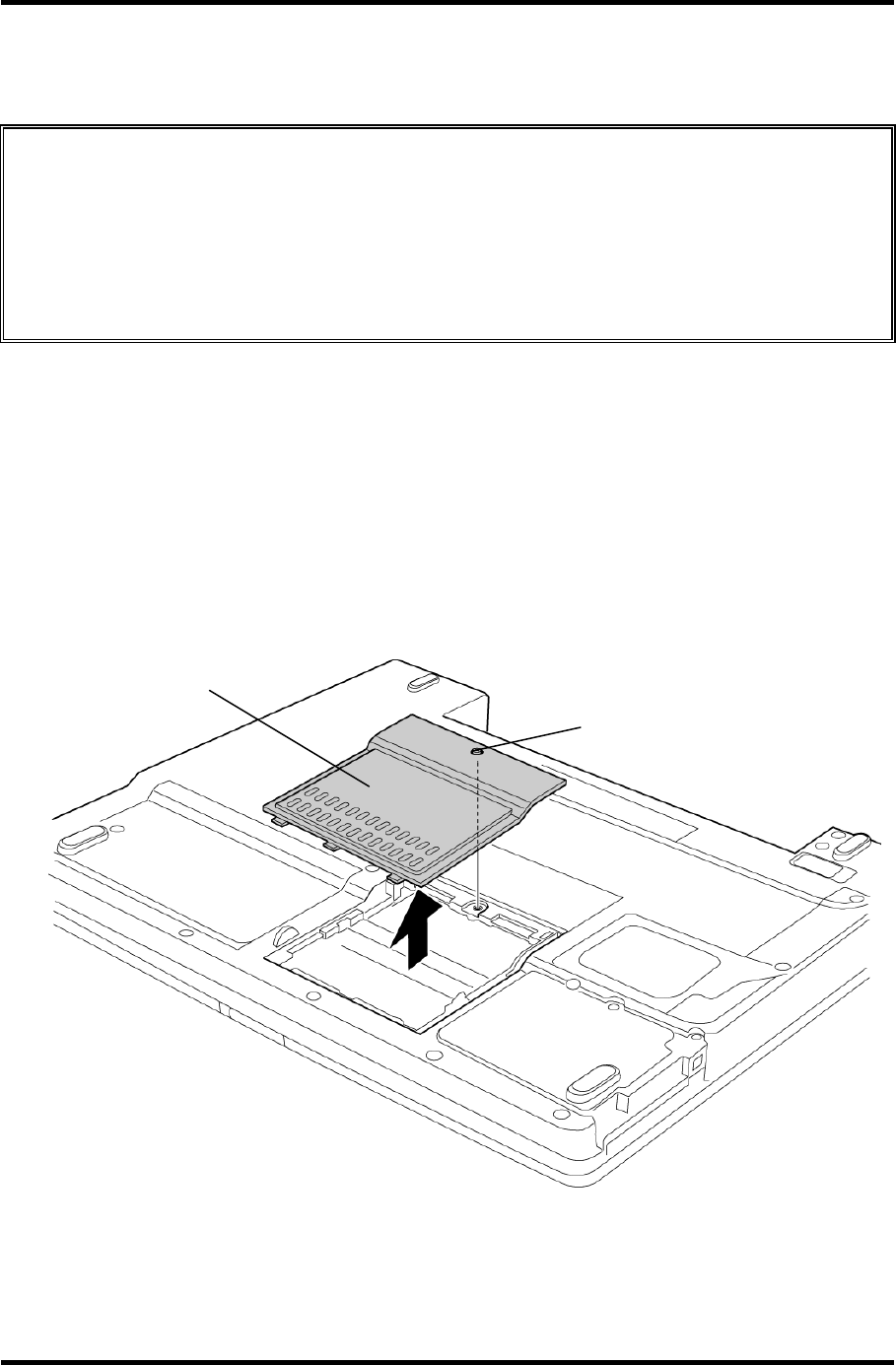

Figure 4-3 Removing Memory Slot Cover
Screw with e
-
ring
Memory Slot Cover
