4.23 Fluorescent Lamp 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-81
4.23.2 Replacing the 15.0 Inch XGA Sharp Fluorescent lamp
Disassembling the 15.0 Inch XGA Sharp Fluorescent lamp
To disassemble the 15.0-inch XGA Sharp fluorescent lamp, follow the steps below and refer
to Figures 4-62 to 4-71.
1. Turn the LCD module face down, and remove the protection cover S (A), protection
cover G (B), fixing tape (C) and fixing tape for lead wire (D).
NOTE: 1) Be careful not to damage the TCP or chips.
2) The protection cover G is reused. Discard the other tapes removed.

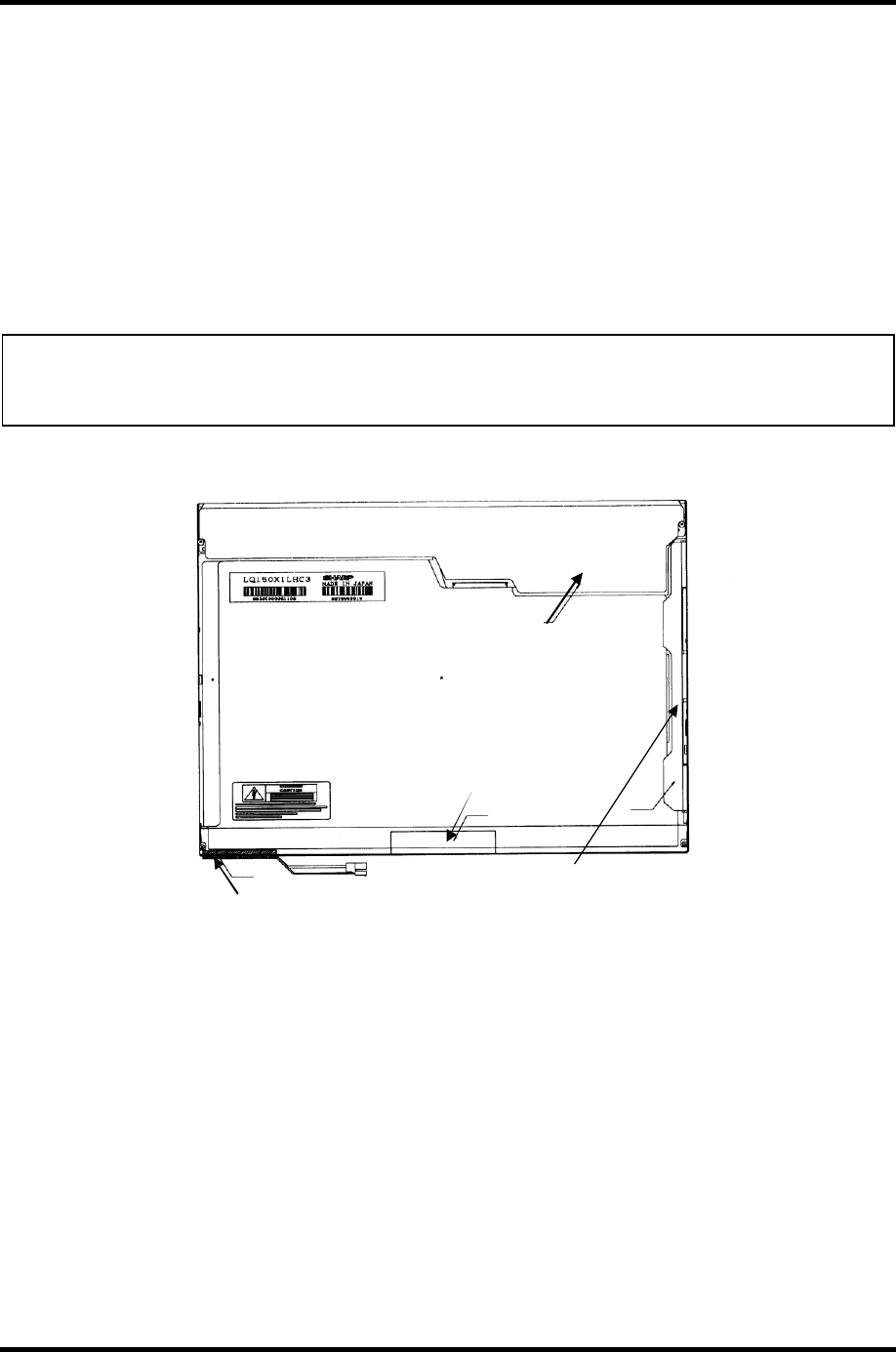

Figure 4-62 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (1)
(A) Protection cover S
(C)
Fixing tape
(B) Protection cover G
(D) Fixing tape for lead wire
