4 Replacement Procedures 4.22 Wireless LAN Antenna/Speaker/Hinge
4-66 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
8. Remove the following screws securing the optical drive cover from the back of the
display assembly. To remove the optical drive cover, pull it out to the right hinge first.
? M2.5x2.8B U-THIN BIND screw x3
? M2.5x4B THIN BIND screw x2

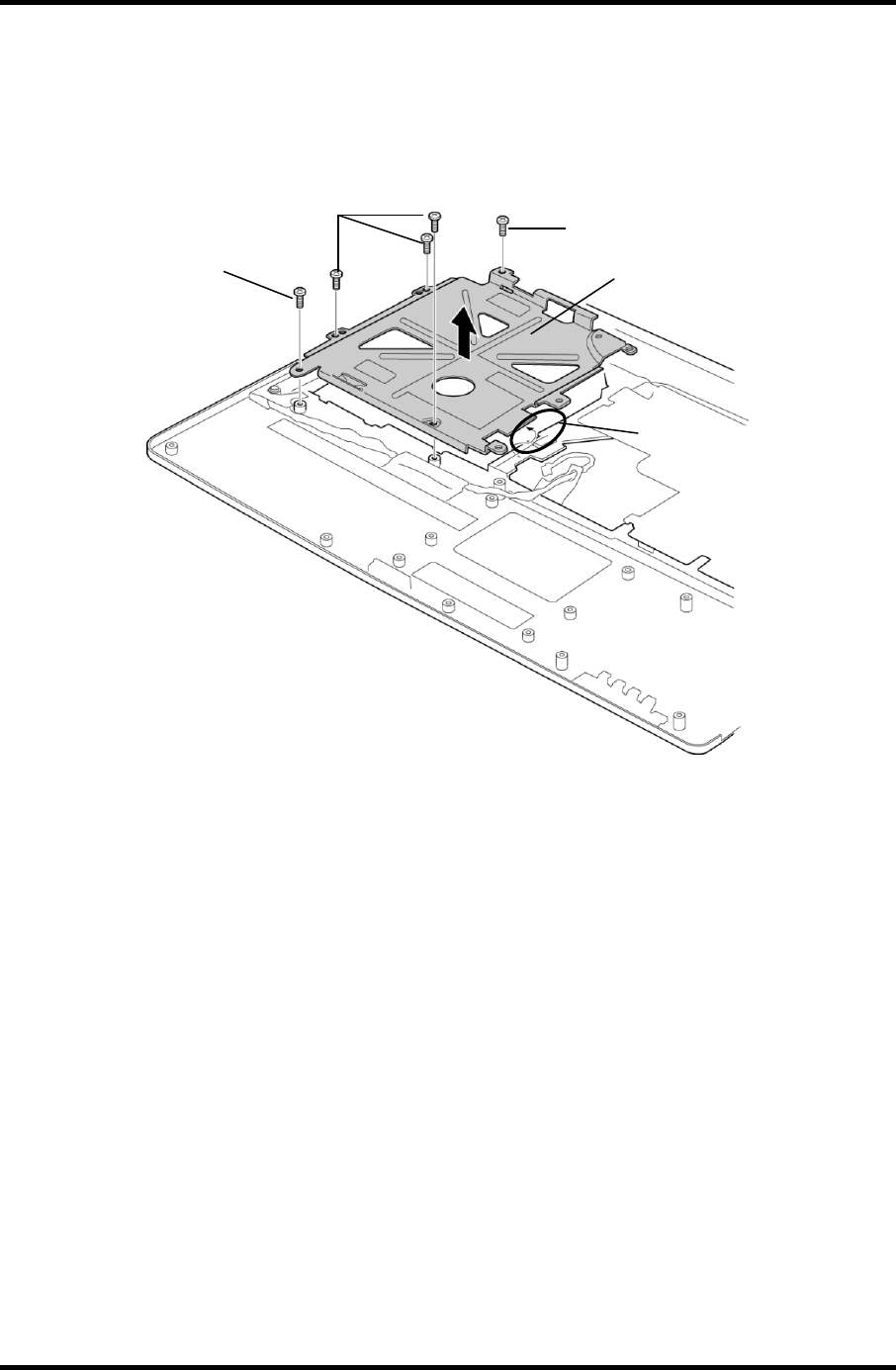

Figure 4-48 Removing Optical drive cover
M2.5x2.8B
U
-
THIN BIND
Optical Drive Cover
M2.5x4B
THIN BIND
M2.5x4B
THIN BIND
“
A
”
