4.23 Fluorescent Lamp 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-83
4. Turn the LCD module face down and remove the two screws fixing the board. Then
open the bent portion of the TCP of the board and remove the backlight.

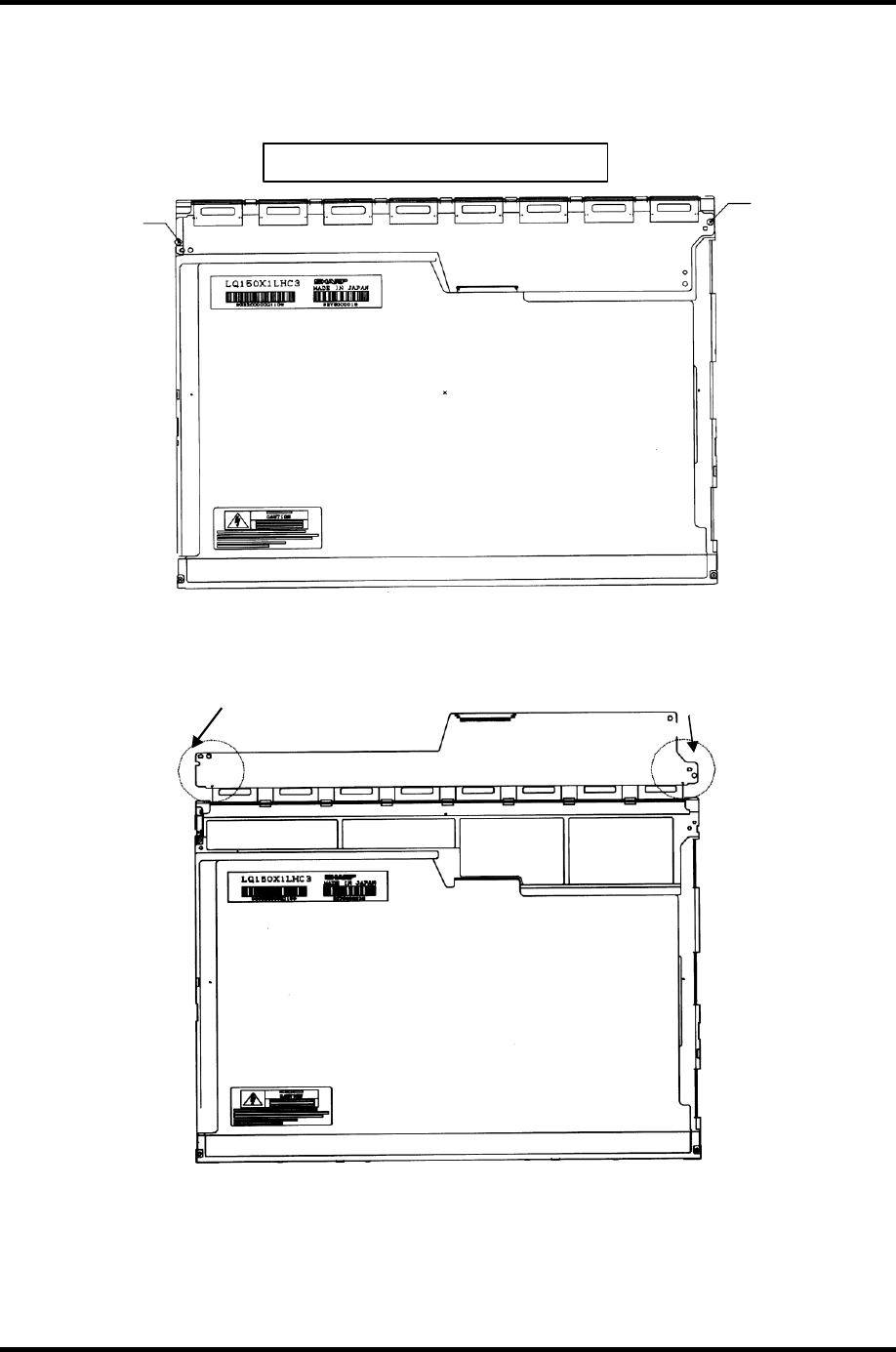

Figure 4-65 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (4)
Figure 4-66 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (5)
Screw
Screw
Screw loosening torque: 1.2kg
?
cm
Do not hold the
Do not hold the
Raise the board and make this condition.
