4 Replacement Procedures 4.10 Optical Drive
4-32 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
4
4.10 Optical Drive
NOTE: Do not apply excessive force to the top of an optical drive.
Removing the Optical drive
The following describes the procedure for removing the optical drive (See Figure 4-21, 4-22).
1. Turn the computer face down and remove the following screw securing the optical
drive assembly.
? M2.5x6B THIN BIND screw x1
2. Pull out the optical drive assembly in the direction indicated by arrow to remove.

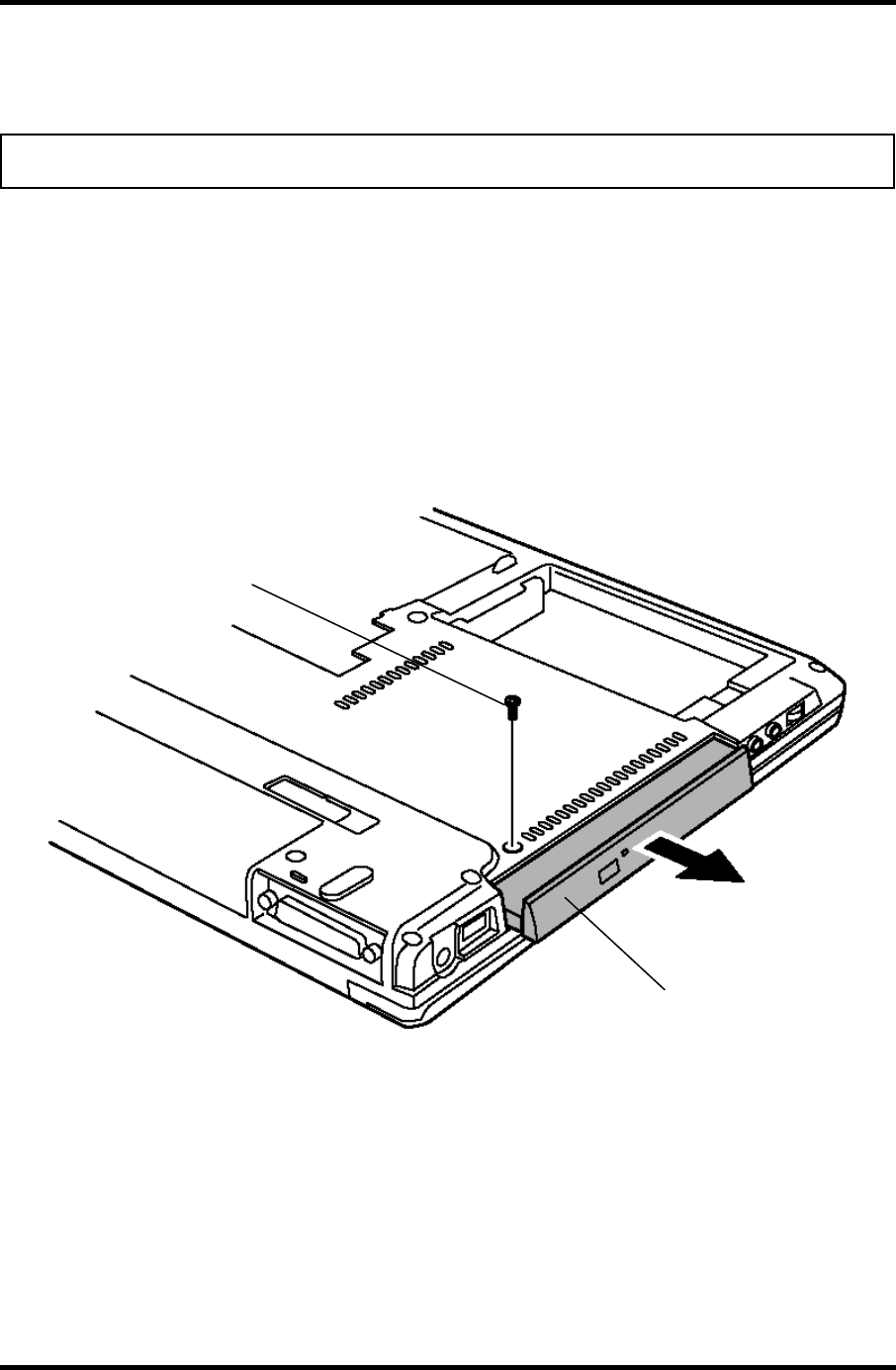

Figure 4-21 Removing optical drive
M2.5x6B THIN BIND
Optical Drive
