4 Replacement Procedures 4.23 Fluorescent Lamp
4-96 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
9. Secure the sides of the unit with the four screws.

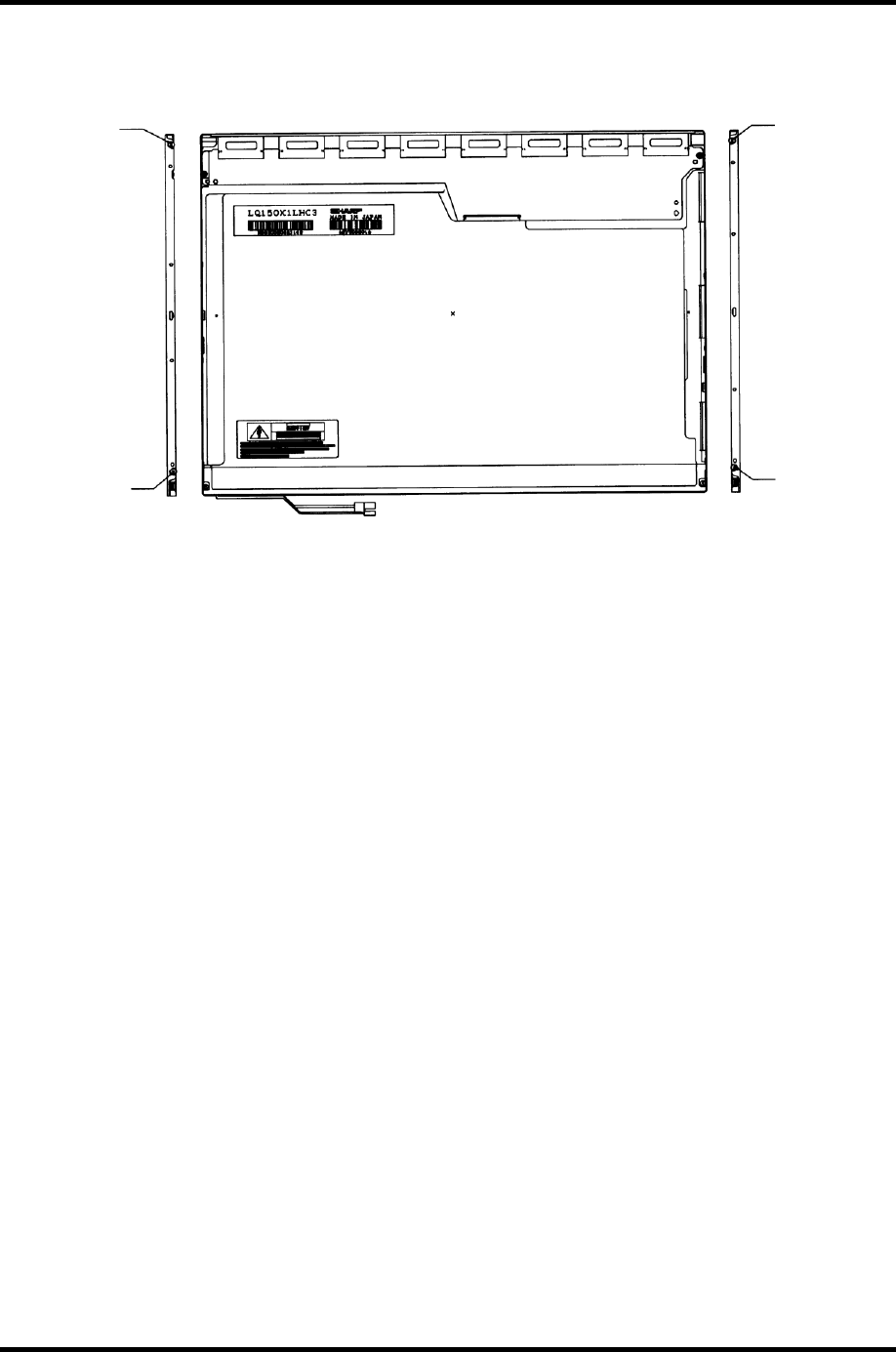

Figure 4-83 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (22)
Screw
Screw
Screw
Screw
