4 Replacement Procedures 4.23 Fluorescent Lamp
4-82 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)

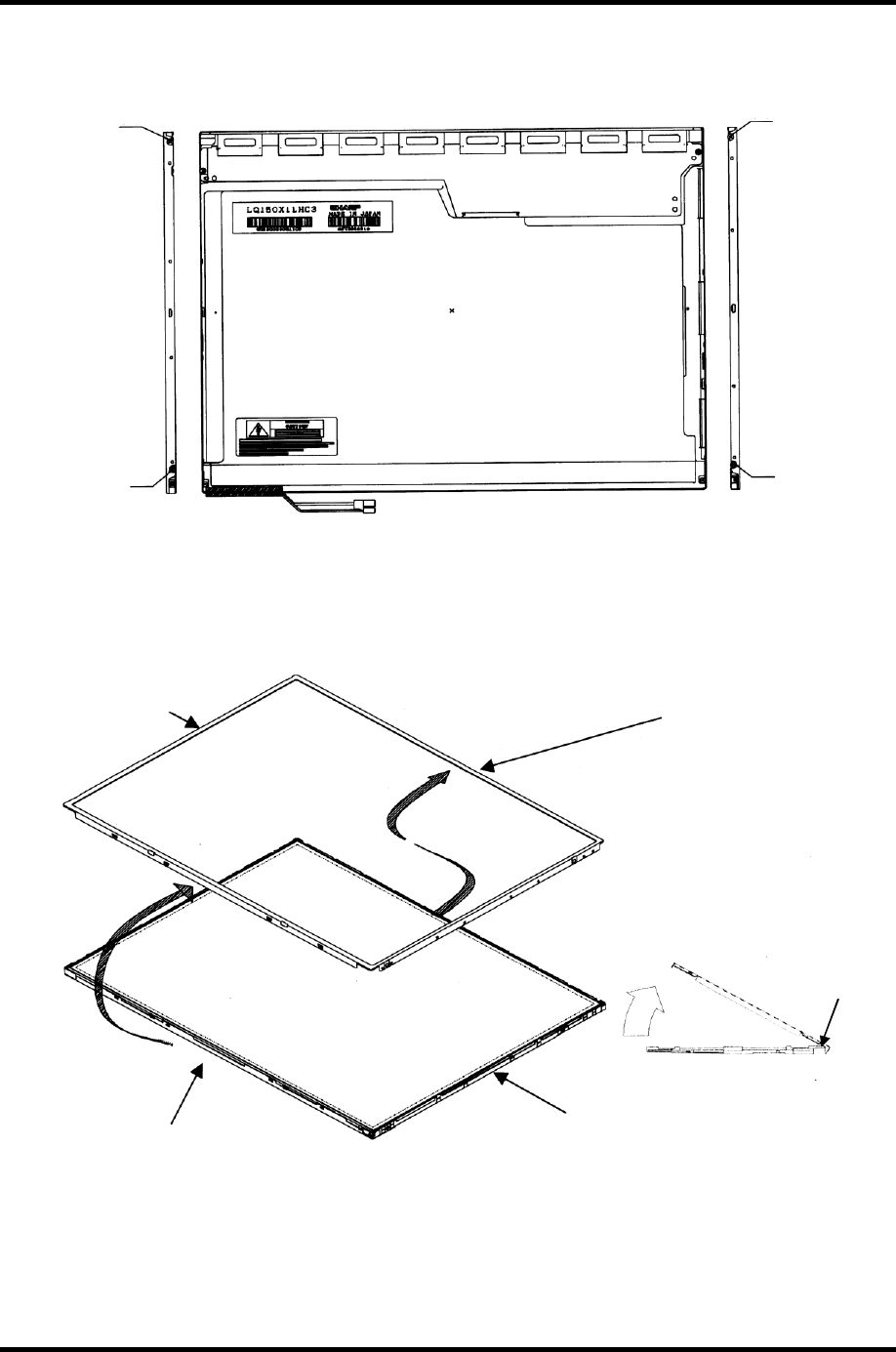

2. Remove the four screws on the sides.
Figure 4-63 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (2)
3. Turn the LCD module face up and remove the bezel (E).
Figure 4-64 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (3)
Screw
Screw
Screw loosening torque: 1.2kg?cm
Screw
Screw
(E) Bezel
(1) Release the bezel from the
four latches of the lamp cover.
(2) Release the two latches (left and right)
on the P-chassis.
(3) Release the hook of
the
bezel from the lamp cover.
< Side view >
Hook
