4.8 Keyboard 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-27
3. Remove the following screws holding the keyboard.
? M2.5?2.8B THIN BIND screw x2
4. Remove the following screw fixing the keyboard hold plate and remove the
keyboard hold plate by pulling it to the right side.
? M2.5?2.8B THIN BIND screw x1
5. Lift the upper side of the keyboard out and bring it a little to the display. Then turn it
face down on the palm rest.

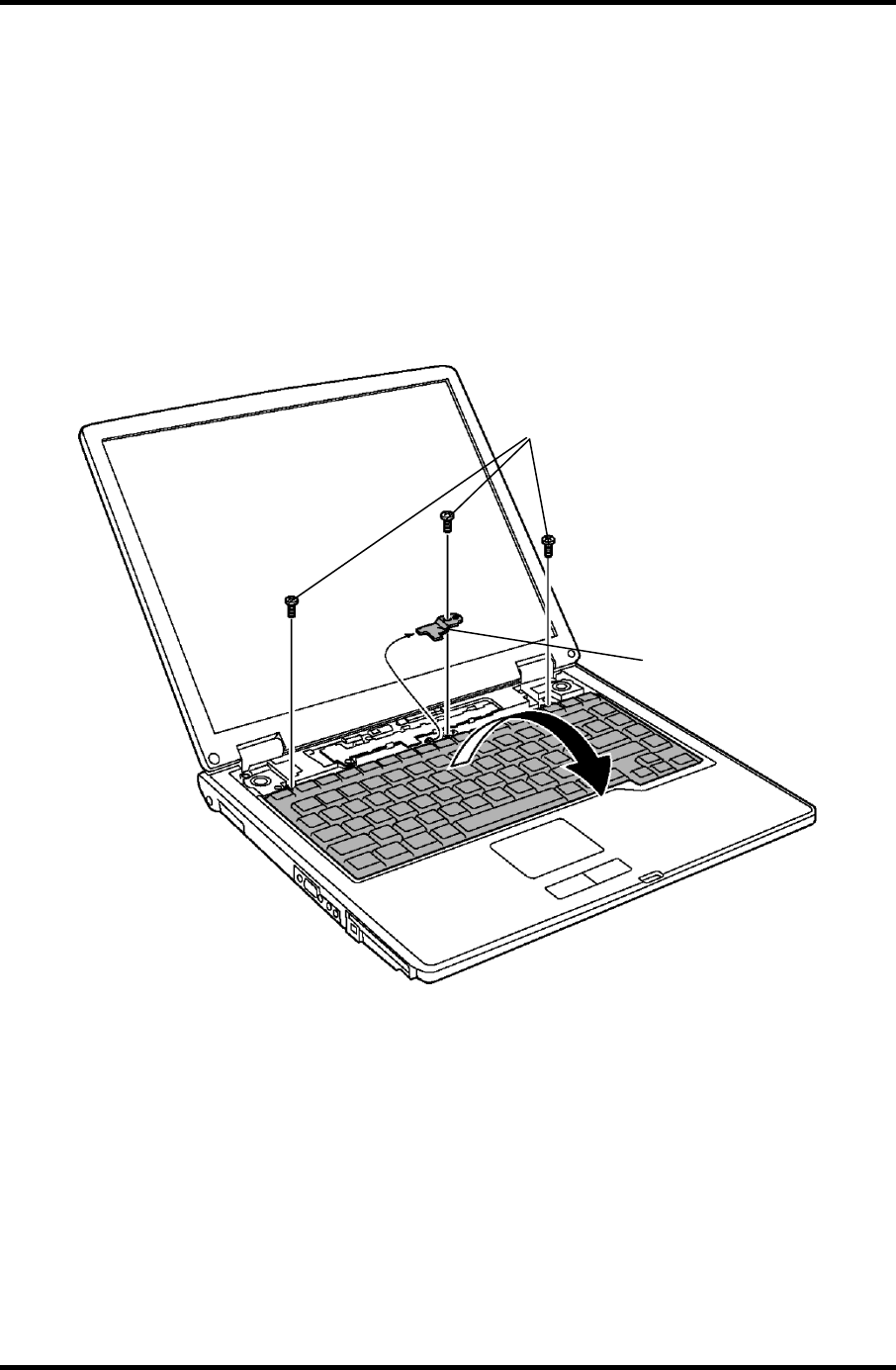

Figure 4-18 Removing Keyboard
Keyboard Hold Plate
M2.5x2.8B THIN BIND
