4 Replacement Procedures 4.11 Display Assembly
4-36 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
6. Pull out the wireless LAN antenna cables from the slot near the center of the base
assembly.
NOTE: When removing the display assembly, be careful not to cut or scratch the wireless
LAN antenna cables.
7. Unhook the latches between the display assembly and the base assembly. Lift the
display assembly up and remove it from the base assembly.

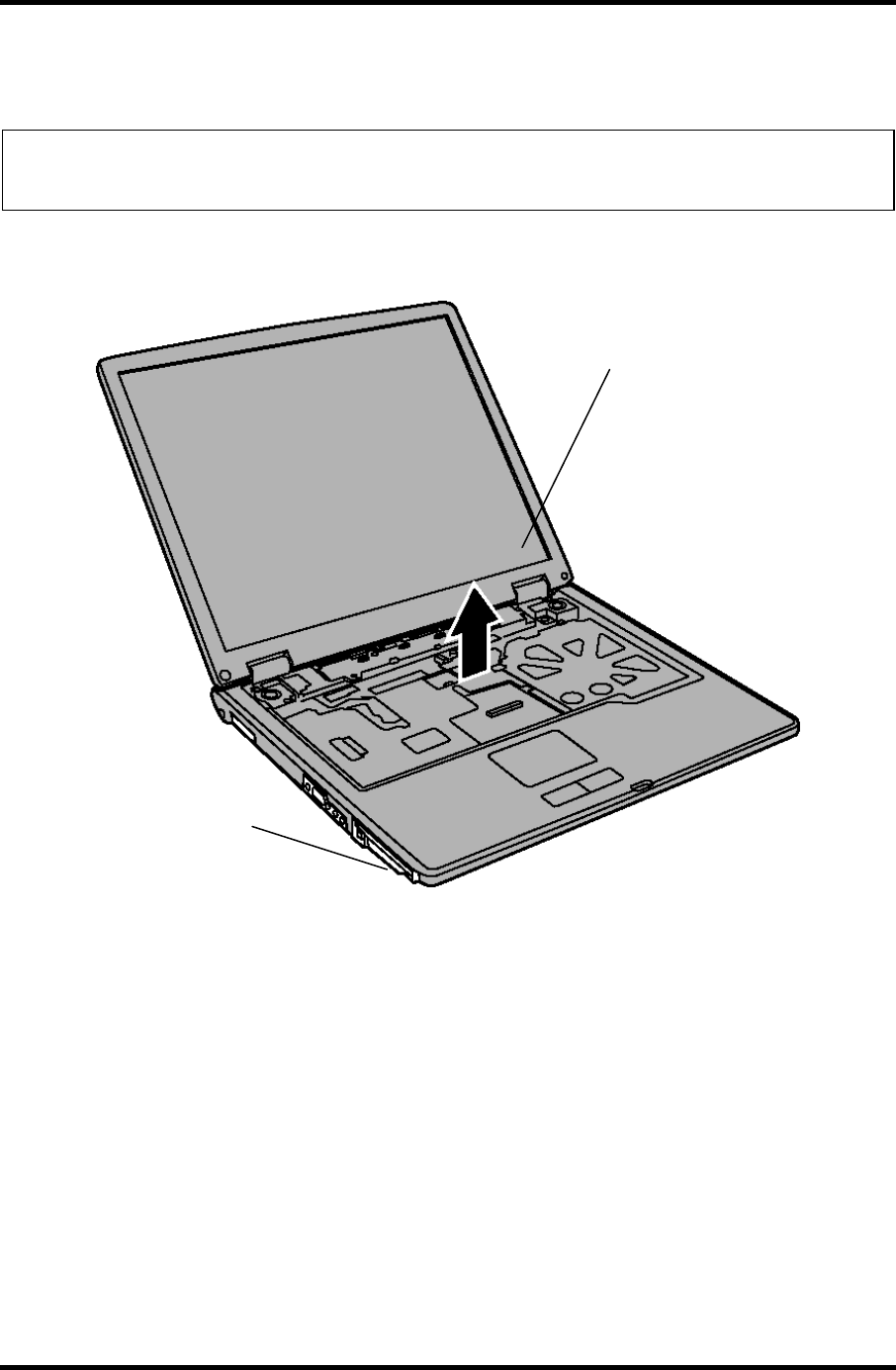

Figure 4-25 Removing Display Assembly
Display Assembly
Base Assembly
